RELIABLE, SMART
PORTABLE WALLBOX

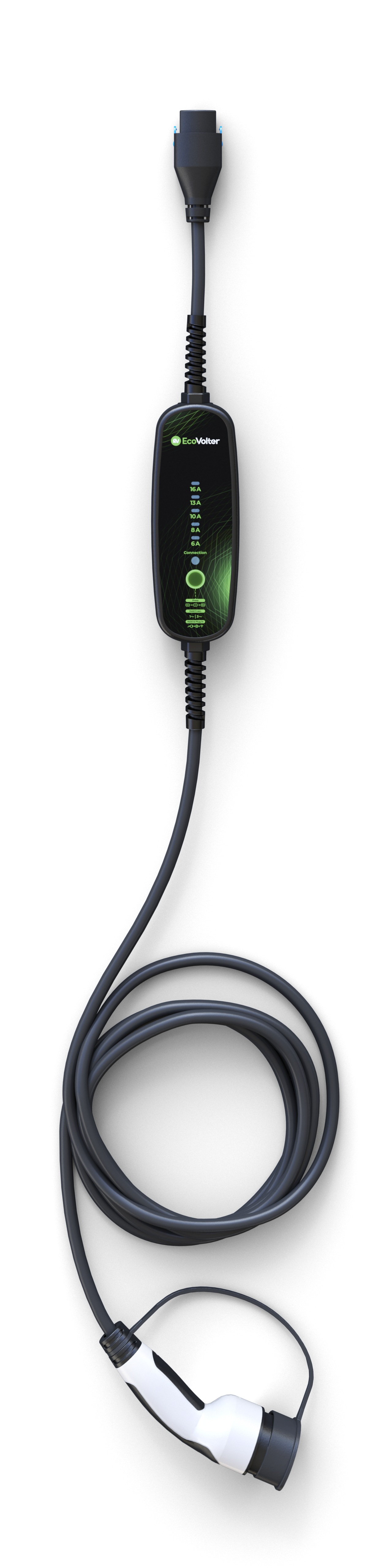

Enjoy the freedom of mobility with the portable Wallbox EcoVolter. Charge anytime and anywhere inspiration strikes you. Don't be tied down to charging in one place and utilize your electric vehicle to its fullest potential.

EcoVolter fully replaces a charging station, allowing you to have a charger with you wherever you need it.

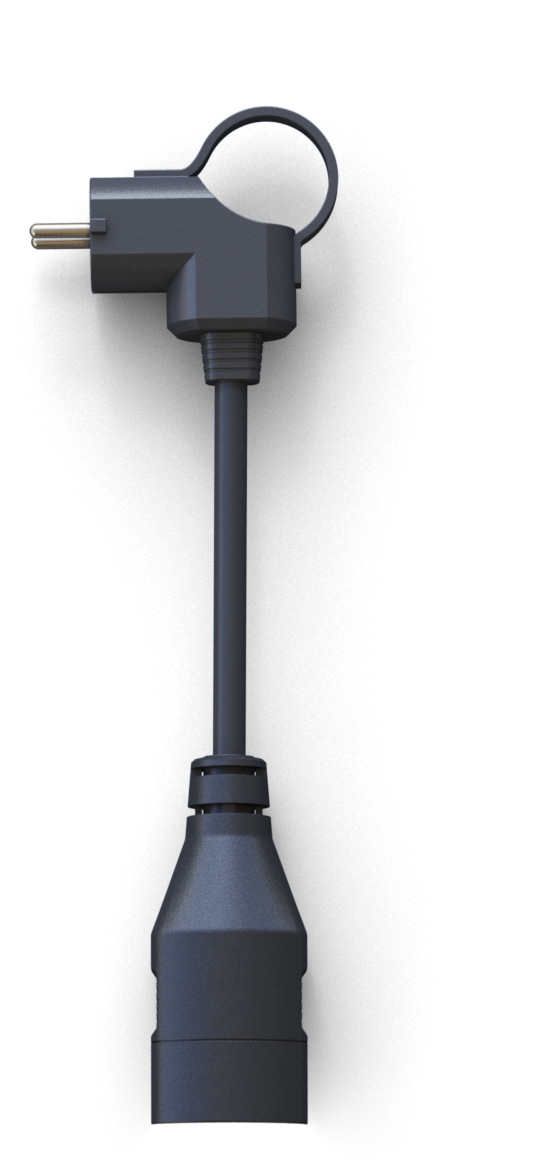

CEE 5p/16A adaptér Tříkolík adaptér Schuko adaptér
Easy exchange of the required adapter enables charging from any standard socket, offering versatility wherever you go.
The CEE 5p/16A plug or a special adapter with over 30 types of socket adapters designed for various countries.
Automatic adapter detection, setting of maximum charging current, and a temperature sensor to monitor the plug temperature.
Verification of the correct socket connection for safe charging operation.
Certified cable specifically designed for charging electric vehicles.
Ability to charge single-phase even with three-phase connection.
Integrated API and OCPP 1.6 communication (for communication with third-party devices).
Easy control of the entire charging process with a mobile application (even without it).
Durable housing with control electronics and charger control panel featuring LED indicators.
Integrated consumption measurement and charging history tracking.
Always up-to-date charger software version thanks to online updates. This ensures compliance with all current standards, regulations, and the addition of new features.
Connectivity with iOS and Android mobile applications, turning your portable Wallbox into a smart charging solution with a wide range of offered features.
A portable Wallbox ready to charge up to 11 kW under any conditions.
Cable length of 6.5m and 10m, with the option to use a special extension for EcoVolter PRO with all safety protections if needed.
Tesla button for easy control of Tesla electric vehicle charging as optional accessory.
Type 2 connector compatible with all currently available electric vehicles on the market.
Wallbox

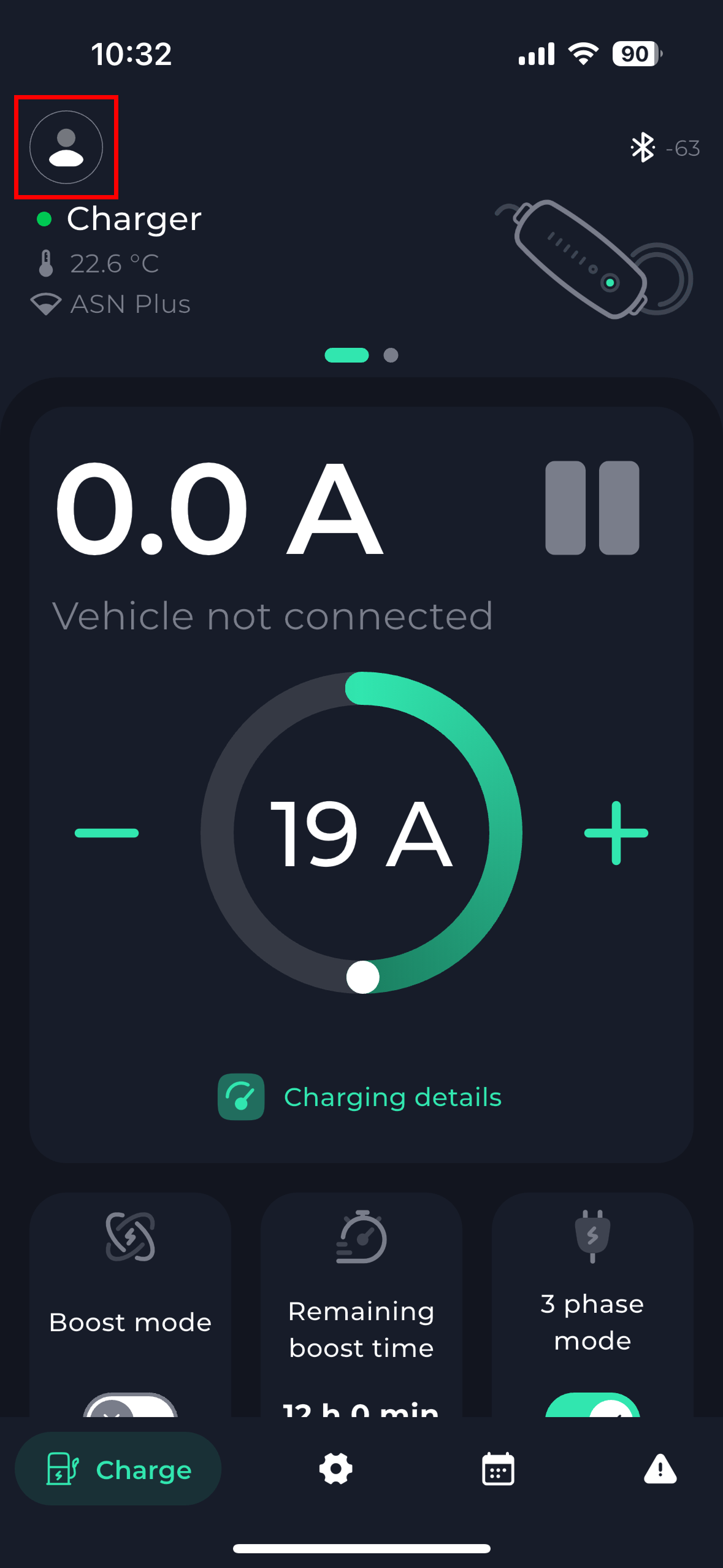

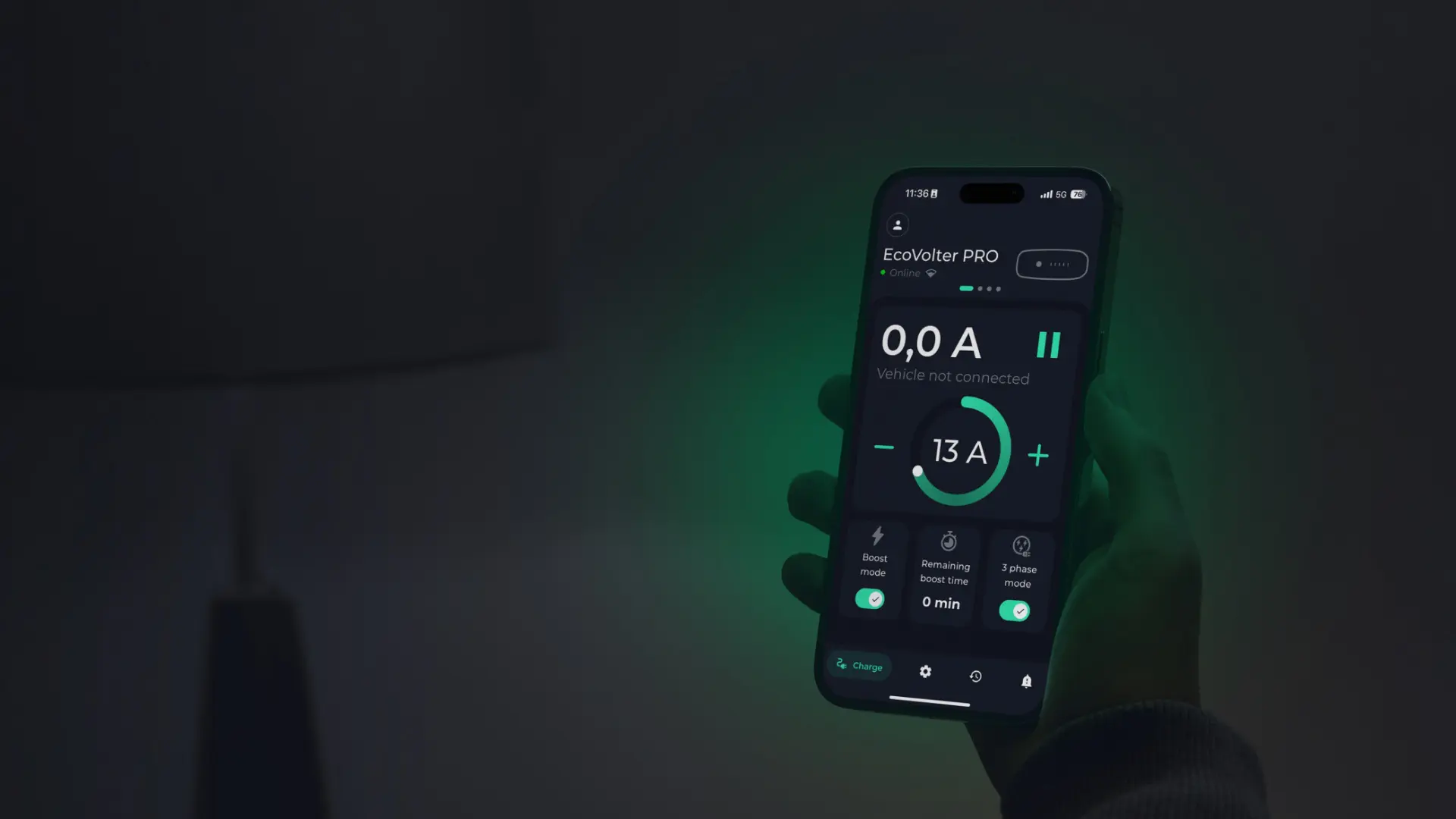

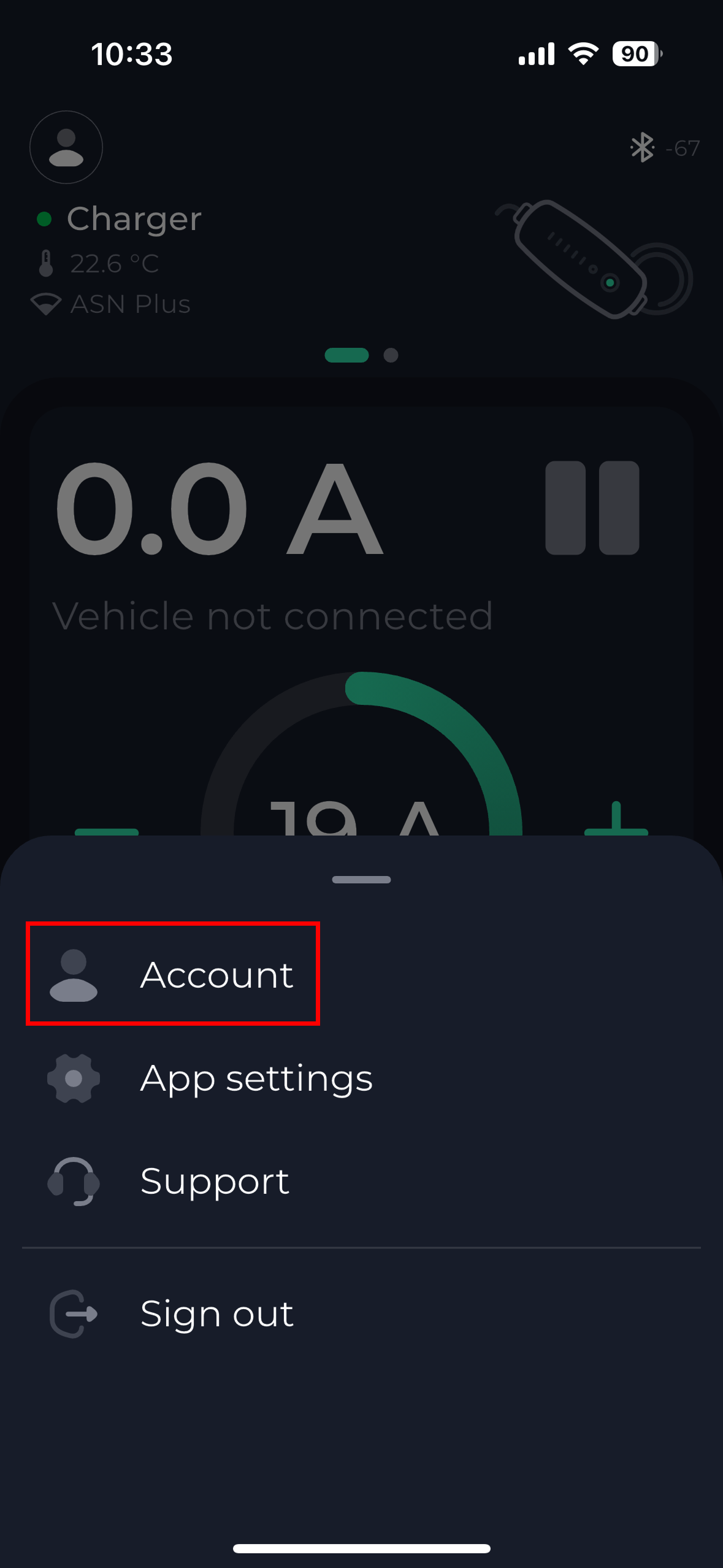

By using the free mobile application iXmanager, available on the App Store and Google Play, charging will be more convenient and the entire charging process easier. In conditions without internet access, the EcoVolter can be used in offline mode like any other charger.

Technical Specifications

Model number  |  Manufacturer Type 2 - 3x16A / 11kW  |  EVCH420RE1001VC20
Product type Mode 2 charging device, in-cable control and protection devices (IC-CPD)
Housing material Flame retardant polyacrylate, black
Housing dimensions 245 x 91 x 47 mm (main unit)
Net weight  |  Gross weight 2800 g  |  3300 g
Dimension incl. packaging 420 x 395 x 120 mm
Nominal voltage  |  Nominal current 230 / 400 VAC  |  16 A
Nominal power  |  Storage temperature 11 kW  |  -30 to +60 °C
Self power consumption 2.5 W
Residual current protection RCD DC 6 mA, AC 30 mA, with initial self-test
Vehicle connection Type 2 (IEC 62196-2), cable length 6.5m, 10m depending on product version
Mains connection CEE 5p / 16A (IEC 60309)
Operating temperature -25 to +45 °C Charging current may be reduced at temperatures over +40 °C
IP protection degree IP 67 (housing), IP44 (main power plug and vehicle connector)
Applicable standards ČSN EN IEC 61851-1 ed.3:2020, ČSN EN 61851-22: 2002, ČSN EN IEC 61851-21-2:2021,
ČSN EN 61000-4-2 ed.2:2009, ČSN EN 61000-4-4 ed.3:2013, ČSN EN 61000-4-6 ed.4:2014,
ČSN EN 61000-4-5 ed.3:2015 + A1:2018, ČSN EN 61000-4-8 ed.2: 2010, ČSN EN 61000-4-11:2020+Opr.2: 2023,
ČSN EN IEC 61000-3-2 ed.5:2019 + A1, ČSN EN 61000-3-3 ed.3: 2014 + A2: 2022, RoHS, EMC, TÜV
Data connectivity Wi-Fi 802.11b

Support for OCPP 1.6 (Open Charge Point Protocol is a universal application protocol that standardizes communication between charging stations and the central management system, known as the backend or cloud.)
API Documentation Externí odkaz

TÜV SÜD CE
